Ready-to-Install Transformers Units

Open-Frame / Enclosed Transformer Assemblies

These toroidal transformers are available in both open-frame and enclosed versions, designed for quick and easy installation with pre-installed connectors. Standard designs ensure low stray magnetic fields, reduced audible noise, and high efficiency, while the compact toroidal geometry allows for optimized space utilization.

Connector types, lead terminations, and mounting configurations can be fully customized to meet specific mechanical layouts, safety standards, or installation requirements. Options include screw terminals, plug-in connectors, flying leads, and custom mounting brackets, enabling seamless integration into a wide range of applications.

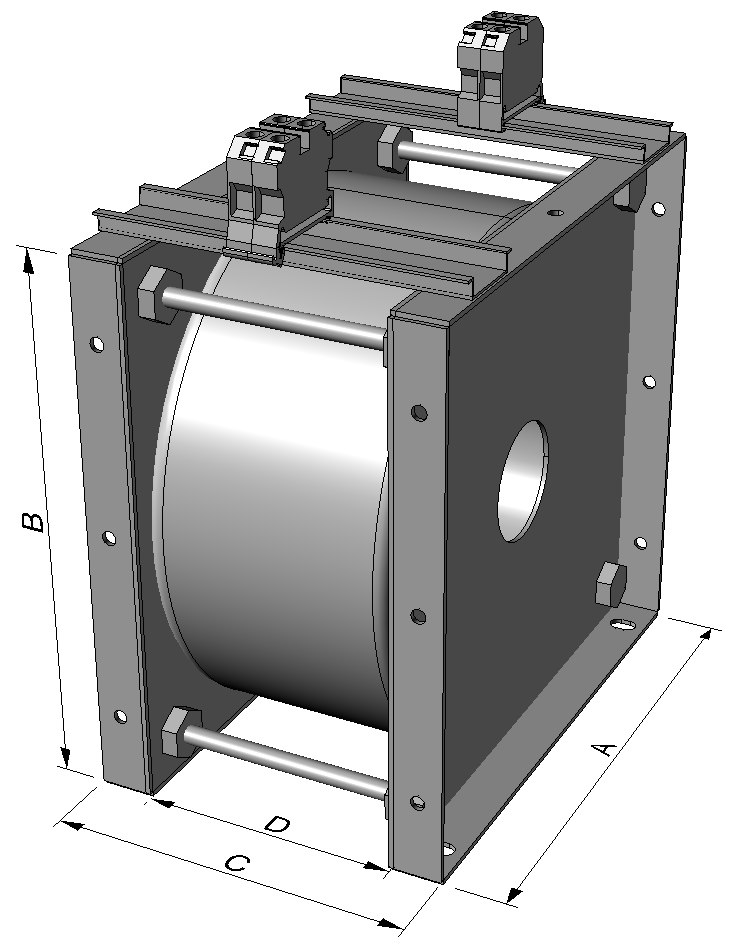

Single Phase Transformer Assemblies

Single Phase Data Chart

Please note that the dimensions and weight provided are indicative and may vary depending on specific design requirements.

---

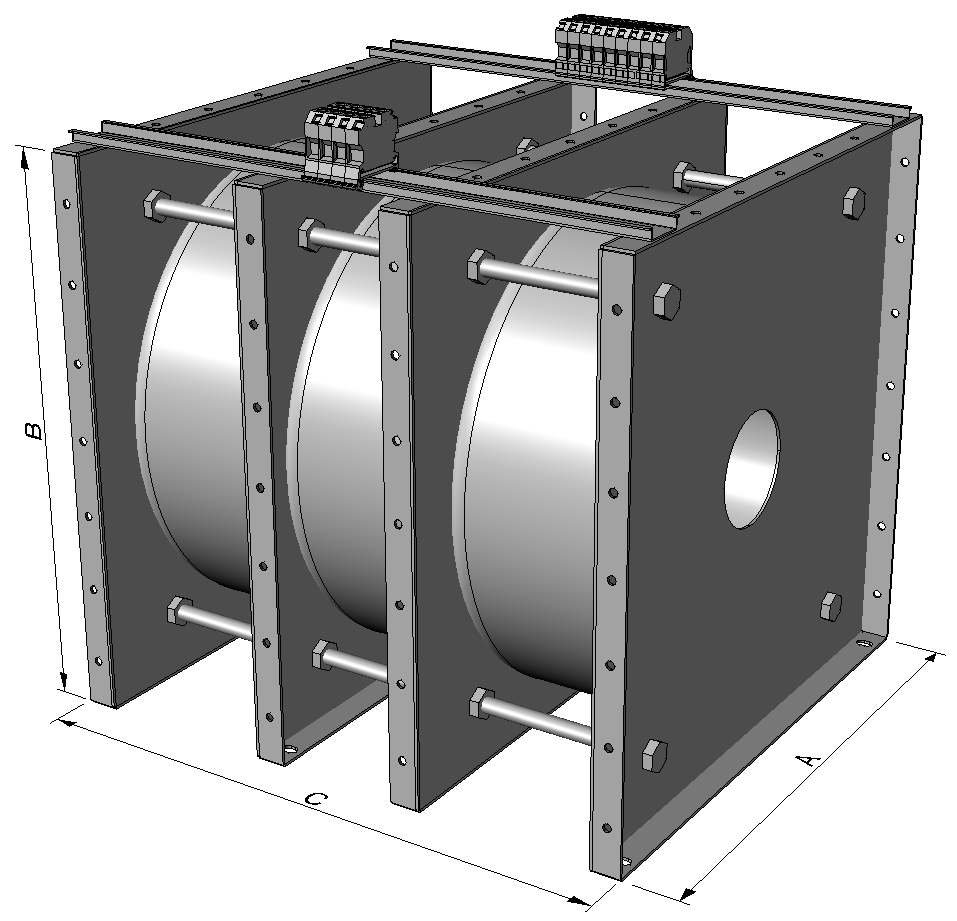

Three Phase Transformer Assemblies

Three Phase Data Chart

Please note that the dimensions and weight provided are indicative and may vary depending on specific design requirements.

Power Rating (VA)	A (mm)	B (mm)	C (mm)	Weight
1000 - 1500 VA	170	170	230	20 kg
1500 - 2500 VA	170	170	260	25 kg
2000 - 3000 VA	235	235	260	30 kg
2500 - 3500 VA	235	235	270	32 kg
3500 - 4500 VA	300	300	320	45 kg
7000 - 9000 VA	300	300	380	55 kg
10 000 - 12 000 VA	300	300	410	60 kg
13 000 - 15 000 VA	350	350	350	70 kg
16 000 - 18 000 VA	350	350	380	75 kg
19 000 - 21 000 VA	350	350	410	80 kg
23 000 - 25 000 VA	350	350	410	95 kg
26 000 - 40 000 VA	400	400	350	105 kg
